FEATURES:

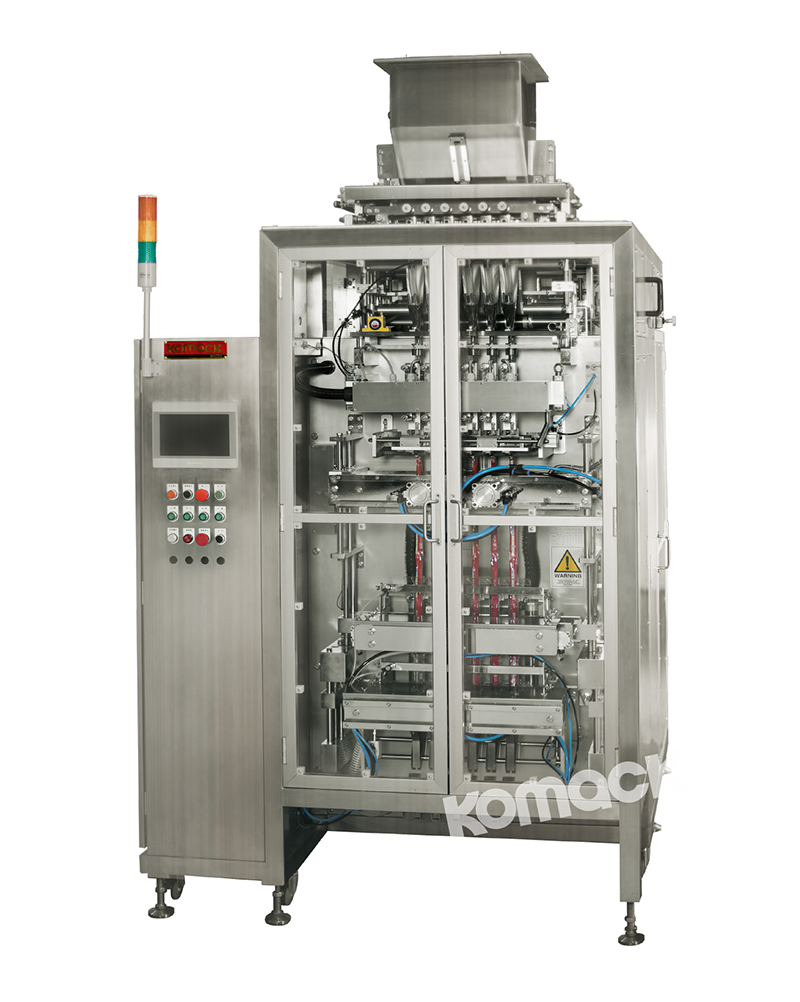

    Features:This model is designed for multi-lane stick pouches, especially for granule and powder. The machine can mount the film, devide them vertically into cylinder-shaped pouches, fill and pack automatically. The operation is simple and safe. Both the size and style of pouches are adjustable. The photoelectric device controls accurately. Through using sliding or auger metering device, the filling volume of each line becomes adjustable. This machine can be used on the batch-produce and mass-produce occasion.
APPLICATION:
    Especially applicable to packaging of all kinds of powder,granule etc.
SPECIFICATIONS:
    Filling Product Powder & Granule
    Pouch Pattern Stick type, Lap or Fin Type
    Pouch Height Range 50-170mm
    Pouch Width 15-65mm
    Optional Item Auger Filler/Sliding Weigher
    Number of lanes 2-12 lanes
    Packaging Capacity 25-60 pouches per minute(1-lane)×lane amount
    (depending on pouch height,film composition,product property,etc)
    Filling Capacity 0.5-50ml
    (depending on product property and filling device to be used)
    Applicable Film Width Maximum 500mm
    Maximum Film Roll Dia ￠400mm
    Power Consumption 3-phase 380V 5.5kw(6 lanes)
    Air Consumption 1000L/min（0.5-0.6Mpa）
    Machine Dimensions 1530mm(L)×2000mm(W)×2600mm(H)
    Machine Weight Approx.1500kg

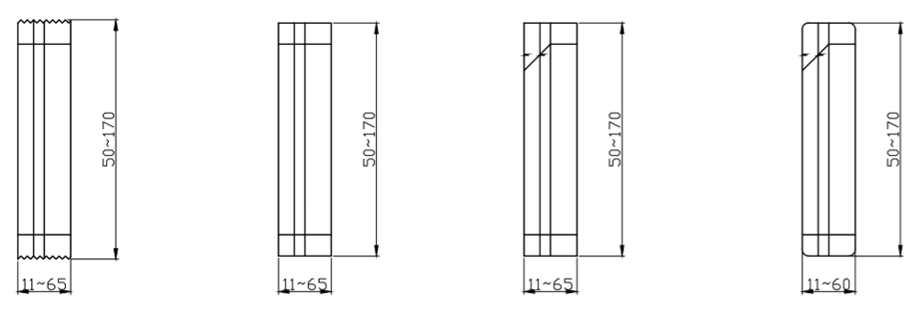

PACKAGING STYLE:
